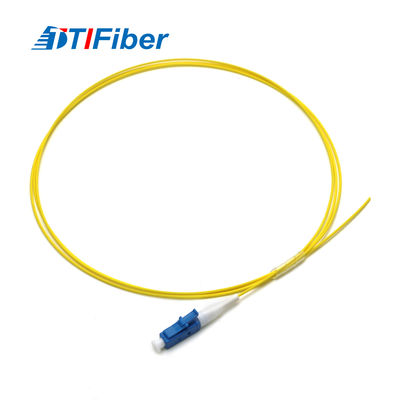

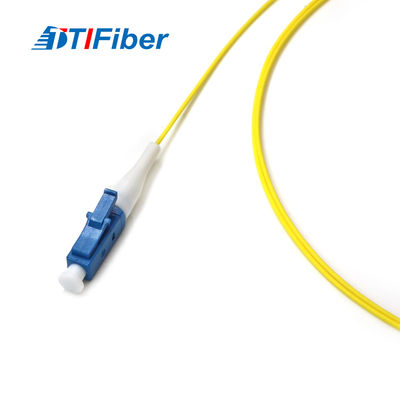

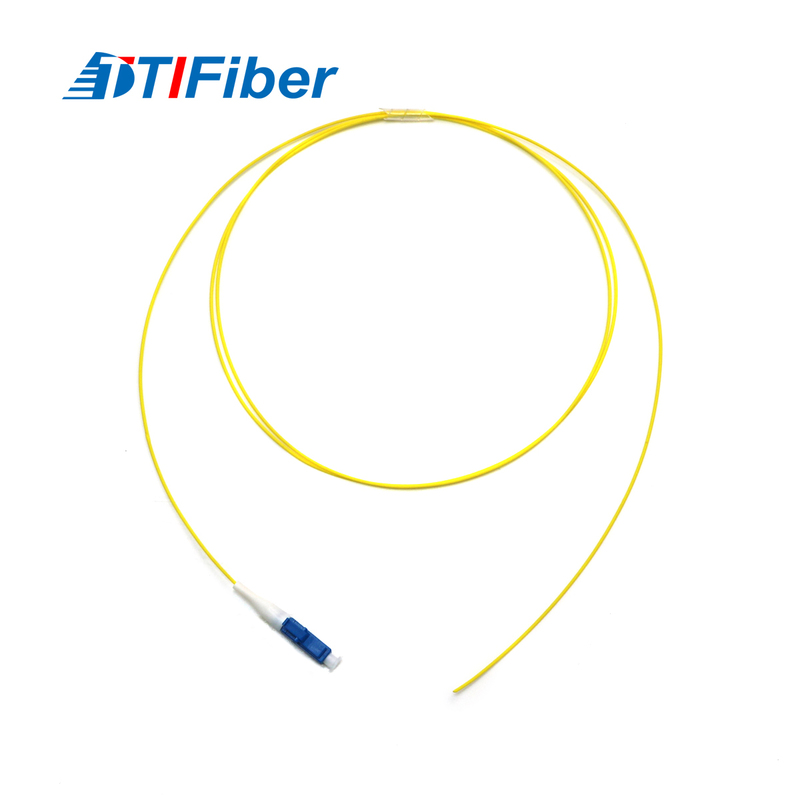

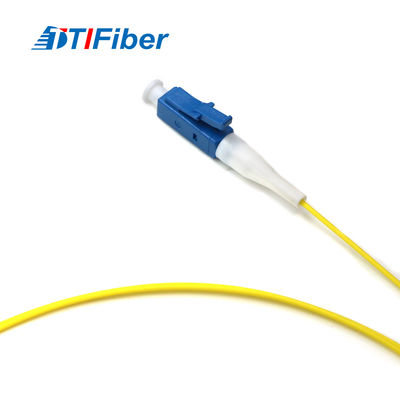

LC APC Single Mode Simplex G652D Fiber Optic Cable Network Communication Patch Cord
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | ग्वांगडोंग, चीन |
| ब्रांड नाम: | TTIFIBER |
| प्रमाणन: | CE/ROHS/ISO9001 |
| मॉडल संख्या: | एफपीजी |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1000 |
|---|---|
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | 1 पीसीएस / पीई बैग |
| प्रसव के समय: | 60 कार्य दिवस |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 7000 पीसी / दिन |
|
विस्तार जानकारी |
|||
| जैकेट: | पीवीसी/LSZH, पीवीसी या LSZH | रंग: | नीला, पीला/एक्वा, पीला, नारंगी |
|---|---|---|---|
| लंबाई: | 1M/2M/3M इतने पर | कनेक्टर प्रकार: | एससी/एलसी/एसटी/एफसी |
| निविष्ट वस्तु का नुकसान: | ≤0.20, MM≤0.75dB, SM≤0.50dB, ≤0.1dB, IL <0.2db | योजक: | एफसी, एससी, एससी / एपीसी (एलसी, एलसी, पसंद के लिए एफसी) |
| तंतु -प्रकार: | SM 9/125 G652D, OS1, 9/125 टाइट बफर्ड फाइबर सिंगल मोड सिम्पलेक्स, G652D/G657A1/G657A2 आदि, G657A1 आद | केबल व्यास: | 0.9/2.0/3.0 मिमी, 3 मिमी, 0.9 मिमी, आदि। |
| प्रमुखता देना: | LC APC single mode fiber optic cable,G652D simplex patch cord,fiber optic pigtail with warranty |
||
उत्पाद विवरण
LC APC Single Mode Simplex G652D Fiber Optic Cable Network Communication Patch Cord
Quick Detail:
- Cable jacket: PVC, LSZH, OFNP, OFNR
- Cable color: Yellow, Orange, Aqua, White, Red, Green, 12 colors
- Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
- Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
- Cable length: 1m, 2m, 3m, 5m....customized
- Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized
Description:
Fiber optic pigtail is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables.
Features:
- 100% test before shipment
- Low insertion loss and high return loss
- Custom Configurations Available at No Extra Charge
- Available in fiber bunch, ribbon fan-out, pigtail available
- Serialized & Individual Test Records
- Meets ROHS and Bell core GR 326-core standards
Applications:
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Specification:
| Parameter | Single Mode | Multi Mode |
|---|---|---|
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO |
| Ferrule End-face | PC | UPC | APC | UPC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
| End-face Geometry | Radius of Curvature: 7~25mm | 5~12mm | N/A |
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | ≤100nm | N/A |
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | ≤100nm | N/A |
| Apex offset | ≤50um | |
| Mechanical | Exchangeability: ≤0.2dB | |
| Salt Spray | ≤0.1dB | |
| Drop | ≤0.2dB(1.5M, 5 drops) | |
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |
| Repeatability | ≤ 0.1dB(1000 times) | |
| Durability | > 1000 times | |
| Operating Temperature | -40°C ~ +85°C | |
Ordering Information:
- Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
- Ferrule End-face: PC, UPC or APC
- Fiber Type: Single Mode(SM) or Multimode
- Cable Core: Simplex or Duplex
- Cable Diameter: 0.9mm, 2.0mm or 3.0mm
- Cable Length: 1, 2, 3 meter or customized
- Cable Type: PVC, LSZH, OFNR, OFNP…
- Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
